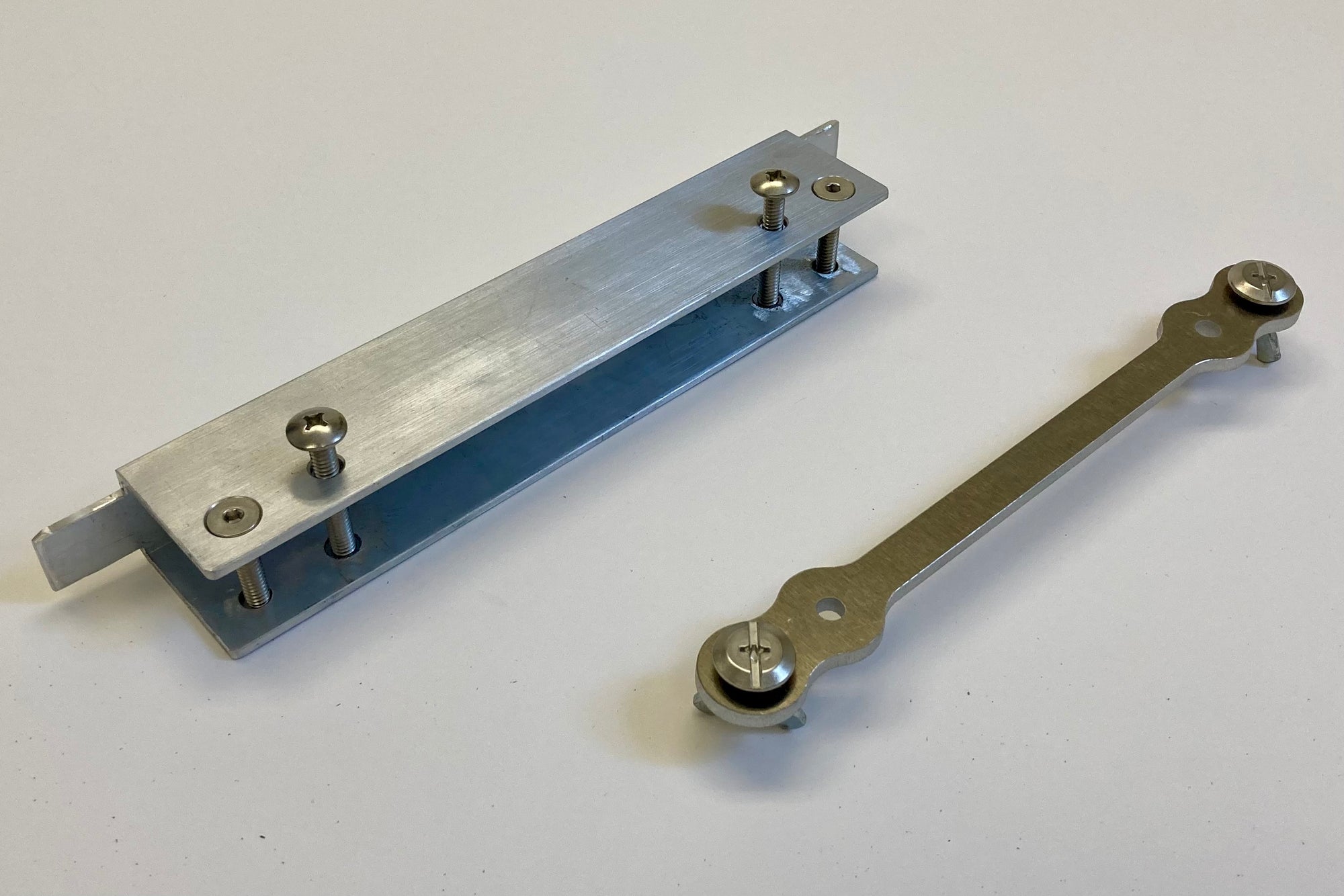

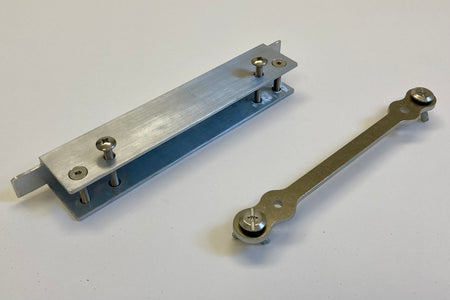

Seat Mounting Standardization Kit
$58.00
-
Sold as a kit. Used on 2015 to 2017 model year Dynamiques with DY4.5 and DY4.6 serial numbers.
In 2021, we launched our new Fiberglass Clam Shell Seating System! These seats come predrilled for all skis sold 2017+. These frames have Seat Pivots with 6” wide mounting provisions.

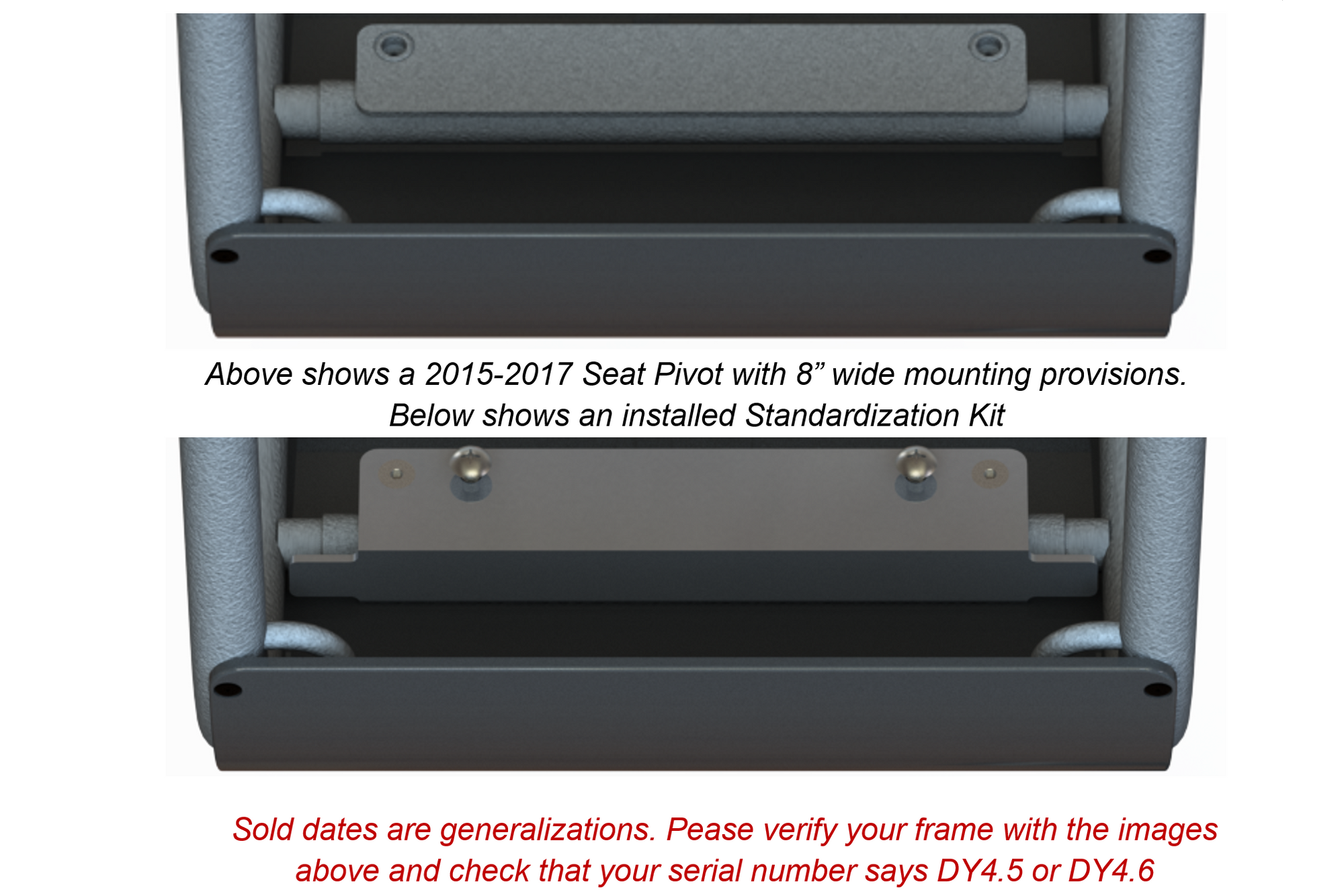

Dynamiques from 2015 to 2017 had Seat Pivots with 8” wide mounting provisions. The Standardization Kit aligns these frames to the newer 6”. This allows our new fiberglass seats to be used on frames from 2015 to 2017. The kit also includes a drill template for the Co-Poly seats. This allows Co-Poly seats to be used on 2017+ frames. Essentially, with this kit any seat can be used interchangeably on any frame.
The Standardization Kit is being offered at our cost in an effort to recognize the investment made by our 2015 to 2017 customers. We appreciate your support and this kit allows us to offer continued and superior customer care.
Note: Sold dates are generalizations. Pease see the product manual and verify your frame with the images and check that your serial number says DY4.5 or DY4.6. Dynamiques 2017+ and all Moniques do not need a kit. -
-
Why did the Seat Pivot mounting provisions change from 8” to 6” wide?
It is Enabling Technologies goal to uphold the highest quality and safety in the industry. In 2017, in an effort to improve the safety of our chairlift evacuation system, we moved the evacuation straps to an improved attachment location under the seat. To create room for the evacuation straps, the Seat Pivot mounting width had to be narrowed from 8” to 6” wide.
-
What is the difference between a Standardization Kit and the Repair Kit?
At a similar time to improving our chairlift evacuation system, we learned that using the handles on the side of the seat to pick up a skier can cause welds to crack on the Dynamique’s Seat Pivot. The design was changed moving forwards and customers from 2015 to 2017 were notified with a recall notice. Customers from 2015 to 2017 received a Repair Kit that strengthened the welds by bracing the Seat Mounting Plate. The Standardization Kit replaces the Repair Kit. It similarly braces those welds, but adds value by simultaneously adding 6” mounting provisions.
If your Dynamique is from these years and does not already have a Repair Kit installed on it please contact us!
-
-
Please familiarize yourself with the manual before ordering and installing. If your Dynamique is from these years and does not already have a Repair Kit installed on it please contact us!
